7.5V Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation

Name: 75V Cut Shaft 15mm Nema 8 Stepper Motor 40mNM For Office Automation
Brand: CASUN
Price: 1 USD

Buy cheap 7.5V Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation product

Brand Name : CASUN

Model Number : 20SHD0255-15B2

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1pcs-10pcs

Price : US $6.94 - 11.00/ Piece

Payment Terms : L/C, D/A, T/T

Supply Ability : 100000pcs / month

Delivery Time : 7-15 workdays

Packaging Details : Carton:38x29xc14m

Connector Type : 4 wiring

Current : 0.6A

Holding Torque : 40mN.m

Inductance : 5.5mH

Length : 38mm

Name : NEMA 8 Stepper Motor

Resistance : 12.5Ω

Shaft Diameter : 4mm

Shaft Length : 15mm

Step Angle : 1.8°

Voltage : 7.5V

Customized : The motor can be designed &manufactured with customized request.

Contact Now

7.5V Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation

7.5V Motor Paso A Paso D Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation. Micro 5.4V 2 Phase 0.6A Bipolar Nema 8 Stepper Motor for Robotics, 20*20*38mm.

Robotic Stepper Motor, 20x20x38mm, 32mN.m. Nema 8 2-phase, 4-wiring, 5.4-volt.

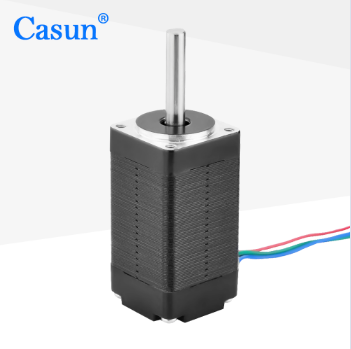

Appearance

7.5V Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation

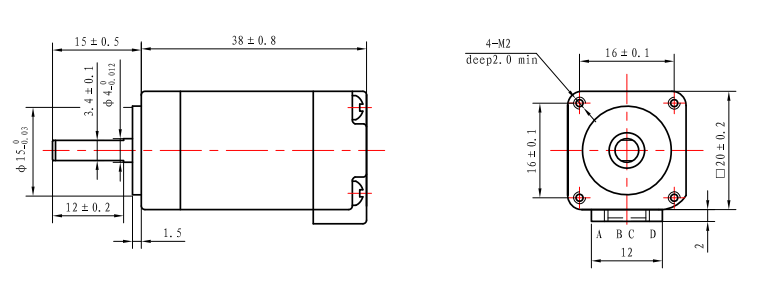

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	40 mN.m
Resistance	12.5 ohm
Inductance	5.5 mH
Rotor Inertia	3.8 g-cm²
Motor Weight	0.08 kg
Number of Leads	4
Connection	Leading

Torque Curves

Torque curve data available upon request.

Customization Options

If your needs can't be met by our regular motor, we may modify the motor to meet your demands.

Special shafts, winding parameters, installation measurements, lead wires with unique specifications, connections, etc. are only a few examples of customized content.

Available Options

Encoder

Brake

Gearbox

Connector
