NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools

Name: NEMA 34 Hybrid Stepping Motor 7NM 98mm Body 18 Degree For Machine Tools
Brand: Casun
Price: 9.49 USD

Buy cheap NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools product

Brand Name : Casun

Model Number : 86SHD4201-37B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $9.49-$14

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angle : 1.8°

Number of phase : 2

Rated current : 3.0A

body : 98mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools

The NEMA 34 stepper motors typically have high torque output and can provide sufficient power to drive heavy loads. The movement is achieved through precise angle control, and each step of movement is precisely defined.

Features

Bipolar or unipolar versions available
We provide customized services and are open to contract manufacturing
Each stepper motor model is suitable for diverse scenarios
Customized service offerings
Customizations on request

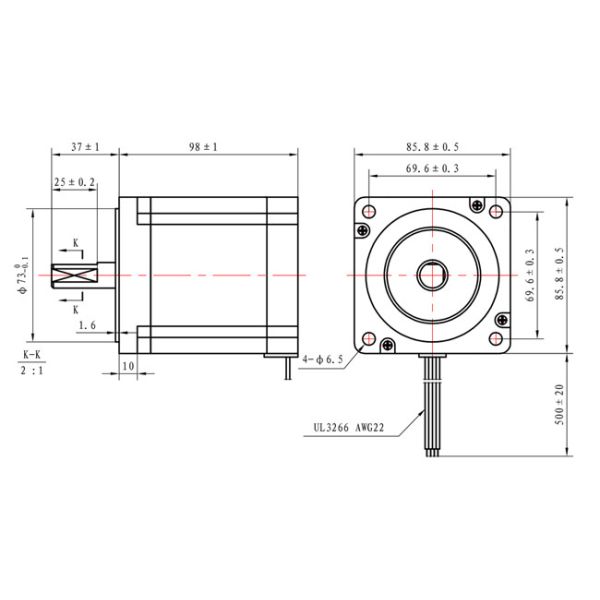

Dimensions

NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools

Motor Specifications

Step Angle	1.8°
Frame Size	86 mm
Number of Phase	2 Phase
Rated Current	3.0A
Holding Torque	7N.m
Resistance	1.5 ohm
Inductance	15 mH
Rotor Inertia	1700 g-cm²
Motor Weight	2.9 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
86SHD4003-32	4.0N.m	1.8°	69mm	Key Shaft-32mm	4.0A
86SHD4101-32	4.5N.m	1.8°	76mm	Key Shaft-32mm	4.0A
86SHD4201-37	5.6N.m	1.8°	98mm	Key Shaft-37mm	4.0A
86SHD4314-37	6.8N.m	1.8°	112mm	Key Shaft-37mm	5.0A
86SHD4404-37	8.0N.m	1.8°	127mm	Key Shaft-37mm	5.0A
86SHD4505-37	12.0N.m	1.8°	150mm	Key Shaft-37mm	5.5A

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
