Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications

Name: Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications
Brand: Casun
Price: 1 USD

Buy cheap Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications product

Brand Name : Casun

Model Number : SGX-1605-120

Certification : CE, ISO, ROHS

Place of Origin : China

MOQ : 1pcs

Price : US $22.00 - 50.00/ Piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100000/pcs per month

Delivery Time : 15 workdays

Packaging Details : Carton:36x29x14cm

Name : Nema 23 ball screw slider rail

Type : Ball screw

Length : 120mm

Engineer : Nema 23

Diameter : 16mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications

The NEMA 23 ballscrew linear slider rail with stepper motor offers high precision, high torque output, excellent response speed, and reliability. The simple control method makes them easy to integrate into various systems.

Key Features

High torque and high precision performance
Ideal for high-tech industry and electronic industry equipment
Our engineers provide optimal solutions within 48 hours
Products deliver both high torque and precision
Personalized services and contract manufacturing available

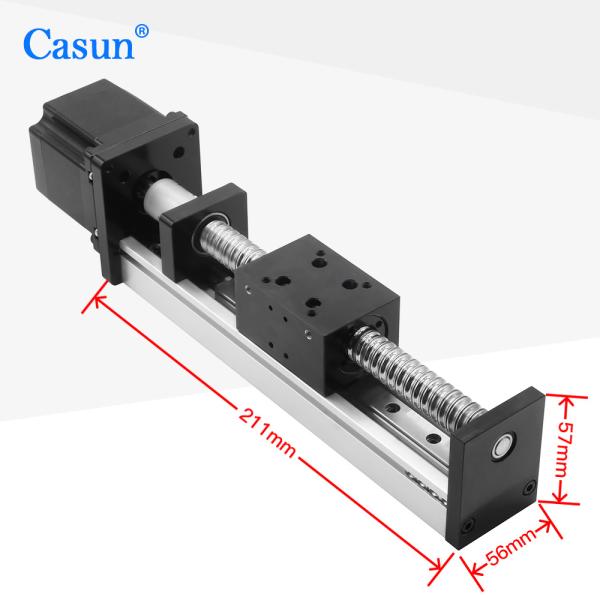

Appearance

Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
