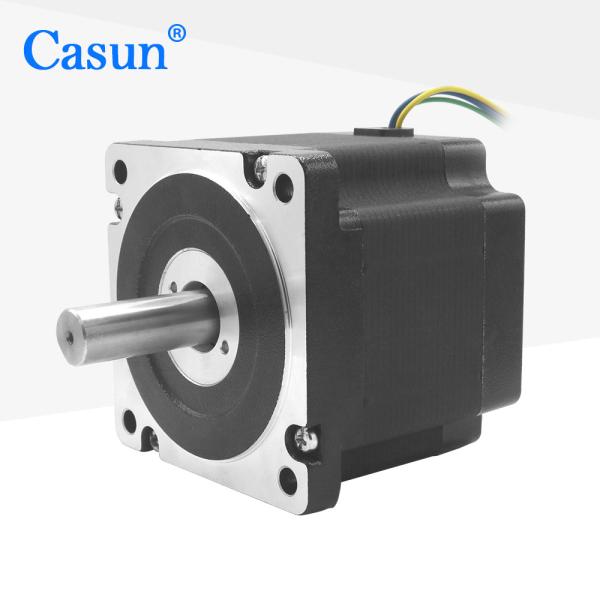

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor

Name: 18 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5NM Cnc Kit Stepping Motor
Brand: Casun
Price: 3.14 USD

Buy cheap 1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor product

Brand Name : Casun

Model Number : 86SHD4109-37S

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 5.0N.m

Current : 3.0A

Motor Length : 76mm

Shaft : Dual Shaft 37mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor

The NEMA 34 stepper motor features a dual axis design that allows simultaneous output of two independent motion control signals. This motor has been specially engineered for demanding industrial applications.

Key Features

High torque and high precision performance
Professional drivetrain solution specialist
Engineering support within 48 hours for optimal solutions
Numerous international certifications for high-tech and electronic industry equipment
Specializing in comprehensive drivetrain solutions

Motor Specifications

Step Angle	1.8°
Frame Size	86 mm
Number of Phase	2 Phase
Rated Current	3.0 A
Holding Torque	5.0 N.m
Resistance	2.4 ohm
Inductance	23 mH
Rotor Inertia	1400 g-cm²
Motor Weight	2.2 kg
Number of Leads	4
Connection	Bipolar

Appearance & Dimensions

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Customization Options

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft
