1.8 Degree Hollow Shaft NEMA 11 Micro Stepper Motor For Medical Machine Robot Camera

Name: 18 Degree Hollow Shaft NEMA 11 Micro Stepper Motor For Medical Machine Robot Camera
Brand: Casun
Price: 4.14 USD

Buy cheap 1.8 Degree Hollow Shaft NEMA 11 Micro Stepper Motor For Medical Machine Robot Camera product

Brand Name : Casun

Model Number : 28SHD4501-K1

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 120mN.m

Current : 0.67A

Motor Length : 51.5mm

Shaft : Hollow

Customized : The motor can be designed &manufactured with customized request.

Contact Now

1.8 Degree Hollow Shaft NEMA 11 Micro Stepper Motor For Medical Machine Robot Camera

2 Phase 1.8 Degree Hollow Shaft NEMA 11 Micro Stepper Motor for Medical Machine Robot Camera

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features

Professional drivetrain solution specialist
Hybrid stepper construction
Available in single or double shaft versions
Professional research and development manufacturing
Customizations on request

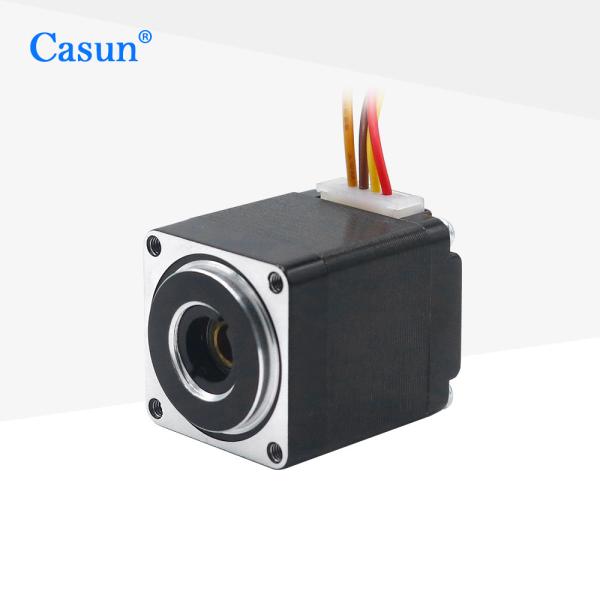

Appearance

1.8 Degree Hollow Shaft NEMA 11 Micro Stepper Motor For Medical Machine Robot Camera

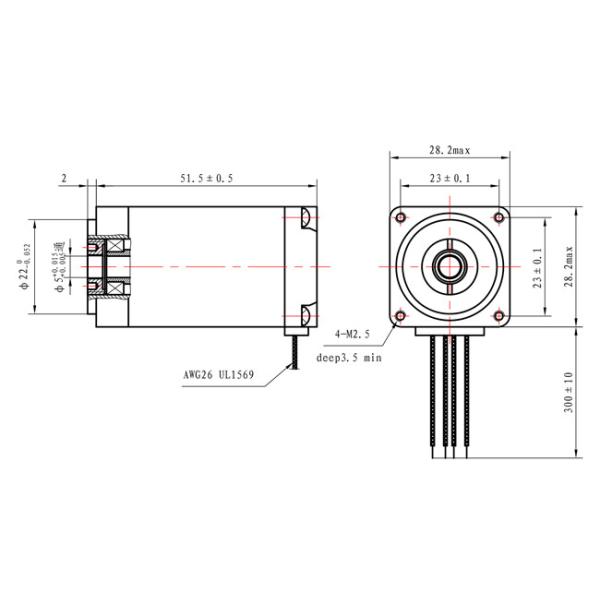

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	120 mN.m
Resistance	9.5 ohm
Inductance	6.8 mH
Rotor Inertia	18 g-cm²
Motor Weight	0.2 kg
Number of Leads	4
Connection	Bipolar

Torque Curves

Download torque curve data and performance graphs for detailed analysis.

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Connector

Please click the "Get a quote" button below to tell us your requirements.
