41mm Length Mini Step Motor Nema14 35x35x41mm 180mN.M For Medical Machine
Casun Mini Step Motor Nema14 35x35x41mm 180mN.M Stepper Motor For Medical Machine
35x35x41mm 0.5A Casun Stepper Motor Nema 14 Mini Stepper Motor For Medical beauty equipment. Nema 14 Casun Stepper Motor 2 Phase 180mN.m 0.5A 35x35x41mm Stepping Motor for Medical machine.
Motor Specifications
| Specification | Value |
| Step Angle | 1.8° |
| Frame Size | 35 mm |
| Number of Phase | 2 Phase |
| Rated Current | 0.5A |
| Holding Torque | 180 mN.m |
| Resistance | 100 ohm |
| Inductance | 5.8 mH |
| Rotor Inertia | 35 g-cm² |
| Motor Weight | 0.15 kg |
| Number of Leads | 0 |
| Connection | Bipolar |

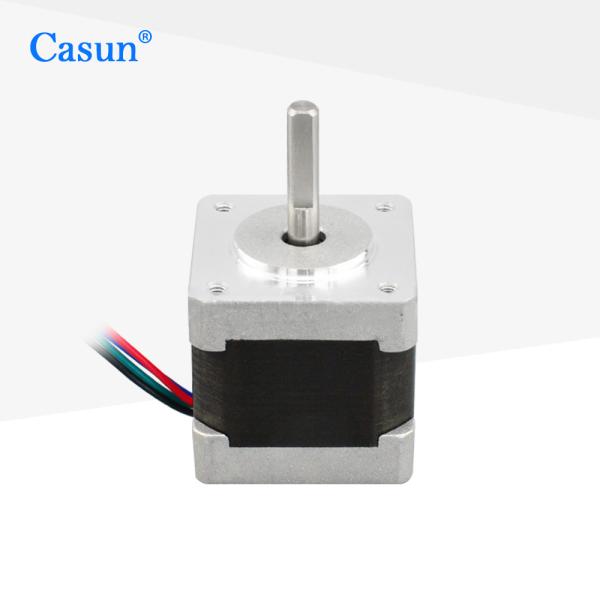

Appearance

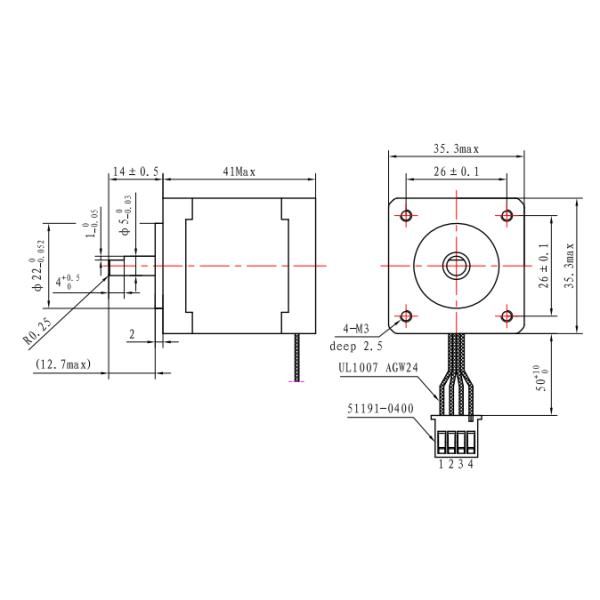

Dimensions
The Nema 14 Casun stepper motor you mentioned is a specific model of stepper motor manufactured by Casun. Here are the specifications you provided:
- Motor Type: 2-phase stepper motor
- Torque: 180mN.m (millinewton-meter)
- Current: 0.5A (Amperes)
- Dimensions: 35x35x41mm (width x depth x height)
This particular stepper motor is designed for use in medical machines, which suggests it may be used in applications where precise and controlled movements are required. Stepper motors are commonly used in various industries and applications, including robotics, automation, 3D printers, and CNC machines.
Download
Custom Motor Solutions
If our standard motor cannot meet your needs, we can customize the motor according to your requirements.
Customized content includes but is not limited to:
- Special shafts
- Winding parameters
- Installation dimensions
- Lead wires with special requirements
- Connectors
Available Options:
Encoder | Brake | Gearbox | Connector
